REPLACEMENT SPROCKET SEGMENTS

REPLACEMENT SPROCKET SEGMENTS

Product Image

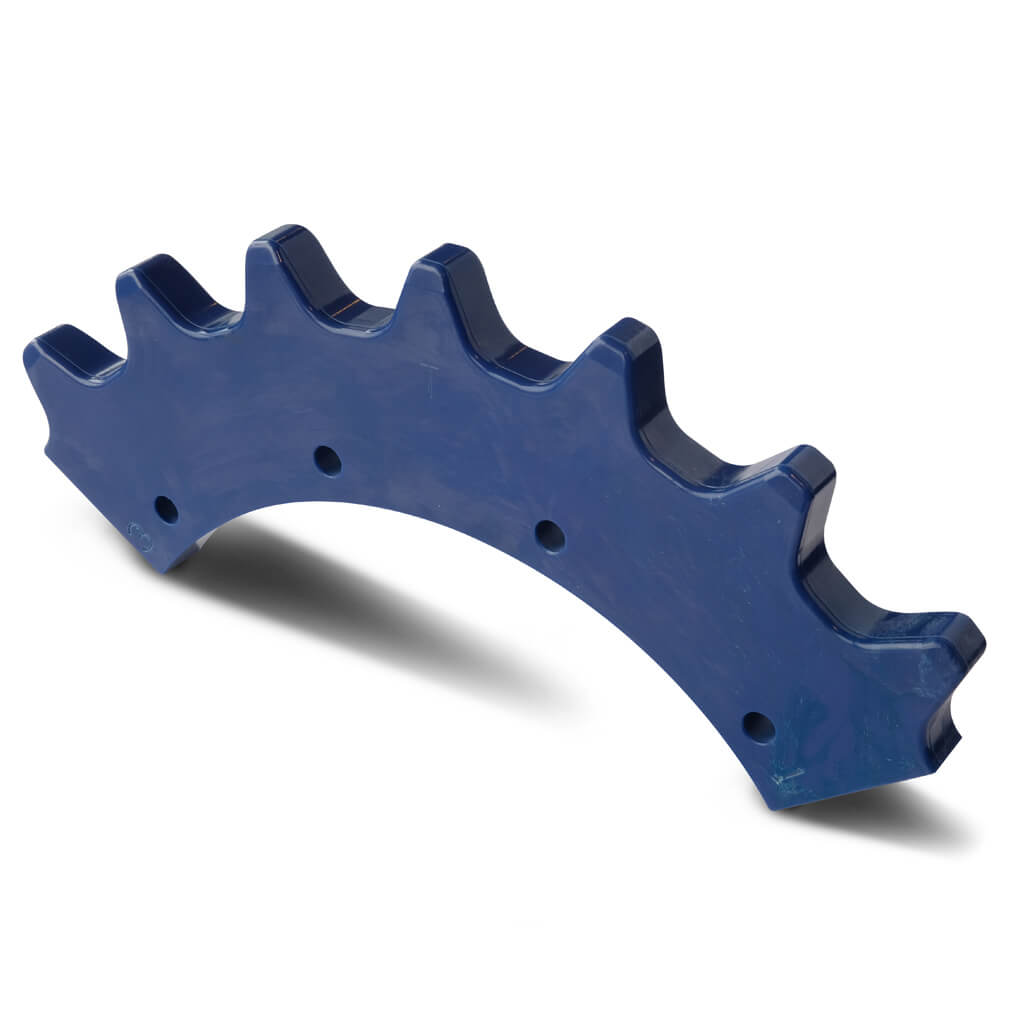

Replacement Sprocket Segment to replace tooth segments, 720 Series, 78 Series and more,
prodSingleMainImgPlchldr Replacement Sprocket Segment to replace tooth segments, 720 Series, 78 Series and more,

REPLACEMENT SPROCKET SEGMENTS Details

REPLACEMENT SPROCKET SEGMENTS

Categories:

(720 Series, 78 Series and more.) Diversified Plastics can manufacture replacement tooth segments to fit your existing hubs. Our replacement segments can interface with cast iron, as well as plastic hubs that provide replacement segments.

REPLACEMENT SPROCKET SEGMENT DATA:

CURRENT TYPE OF CHAIN

PROPOSED TYPE OF CHAIN

CHAIN PITCH

NUMBER OF TEETH

PITCH DIA

CHAINSAVER RIM YES OR NO

(IF YES) CHAINSAVER RIM OD

INTERIOR DIMENSION

IF SEGMENT REQUIRES BOLT HOLES

NUMBER OF HOLES

SIZE OF HOLES

BOLT CIRCLE

THRU HOLE, COUNTER BORED HOLES OF CHAMBERED HOLES

DOES SPROCKET SEGMENT HAVE A COUNTER BORED ID?

Materials

Acetal

Nylon

Polyurethane

UMHW P.E.

Diversified Manufacturing

Diversified Plastics continually innovates and looks for ways to improve the life of a product and reduce procurement and maintenance costs. We help you choose the best process to maximize your investment.

MultiFab™ Technology

We combine the capabilities of Fabrication, Machining, Injection Molding, and PolyUrethane Casting under one roof to create an innovative solution for our customer. We call this MultiFab Technology.

Custom Fabrication

From design, to prototyping to process engineering, our experience with the wide range of plastic solutions allows us to solve any plastic component challenge.

Machining

Machining out of solid engineered plastic stock is the ideal way to create parts for applications that require tight tolerances and uniform finish in low- to mid-quantity runs.

Injection Molding

Injection molding and overmolding is an extremely flexible process that dramatically reduces waste and cost when creating parts especially in mid- to high-volume runs.

Urethane Casting

Pouring liquid urethane into molds and allowing it to cure is a proven method for creating parts in a multitude of shapes, sizes and durometers.

Thermoforming

Forming plastic sheet material with heat and pressure is a very cost-effective and versatile process with low set-up and tooling costs, making it efficient for low volume runs.
