Non-Metallic Bar Screen Rakers

Non-Metallic Bar Screen Rakers

Product Image

Non-Metallic Bar Screen Raker red, increase service life engineered plastics with stainless steel components.
prodSingleMainImgPlchldr Non-Metallic Bar Screen Raker red, increase service life engineered plastics with stainless steel components.

Non-Metallic Bar Screen Rakers Details

Non-Metallic Bar Screen Rakers

Categories:

Diversified Plastics can offer solutions to increase the service life of your bar screen components by utilizing engineered plastics along with stainless steel components.

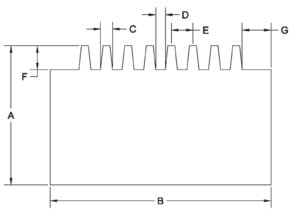

DATA NEEDED:

A = WIDTH OF RAKE

B = LENGTH OF RAKE

C = TOOTH WIDTH

D = TOOTH GAP

E = TOOTH CENTERLINE

F = LENGTH OF TOOTH

G = END OF RAKE TO FIRST TOOTH (CHECK BOTH ENDS)

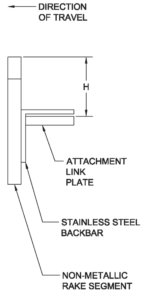

H = DISTANCE FROM RACK TO ATTACHMENT LINK

#GAPS

#TEETH

TYPE OF CHAIN

ATTACHMENT LINK



Diversified Manufacturing

Diversified Plastics continually innovates and looks for ways to improve the life of a product and reduce procurement and maintenance costs. We help you choose the best process to maximize your investment.

MultiFab™ Technology

We combine the capabilities of Fabrication, Machining, Injection Molding, and PolyUrethane Casting under one roof to create an innovative solution for our customer. We call this MultiFab Technology.

Custom Fabrication

From design, to prototyping to process engineering, our experience with the wide range of plastic solutions allows us to solve any plastic component challenge.

Machining

Machining out of solid engineered plastic stock is the ideal way to create parts for applications that require tight tolerances and uniform finish in low- to mid-quantity runs.

Injection Molding

Injection molding and overmolding is an extremely flexible process that dramatically reduces waste and cost when creating parts especially in mid- to high-volume runs.

Urethane Casting

Pouring liquid urethane into molds and allowing it to cure is a proven method for creating parts in a multitude of shapes, sizes and durometers.

Thermoforming

Forming plastic sheet material with heat and pressure is a very cost-effective and versatile process with low set-up and tooling costs, making it efficient for low volume runs.
